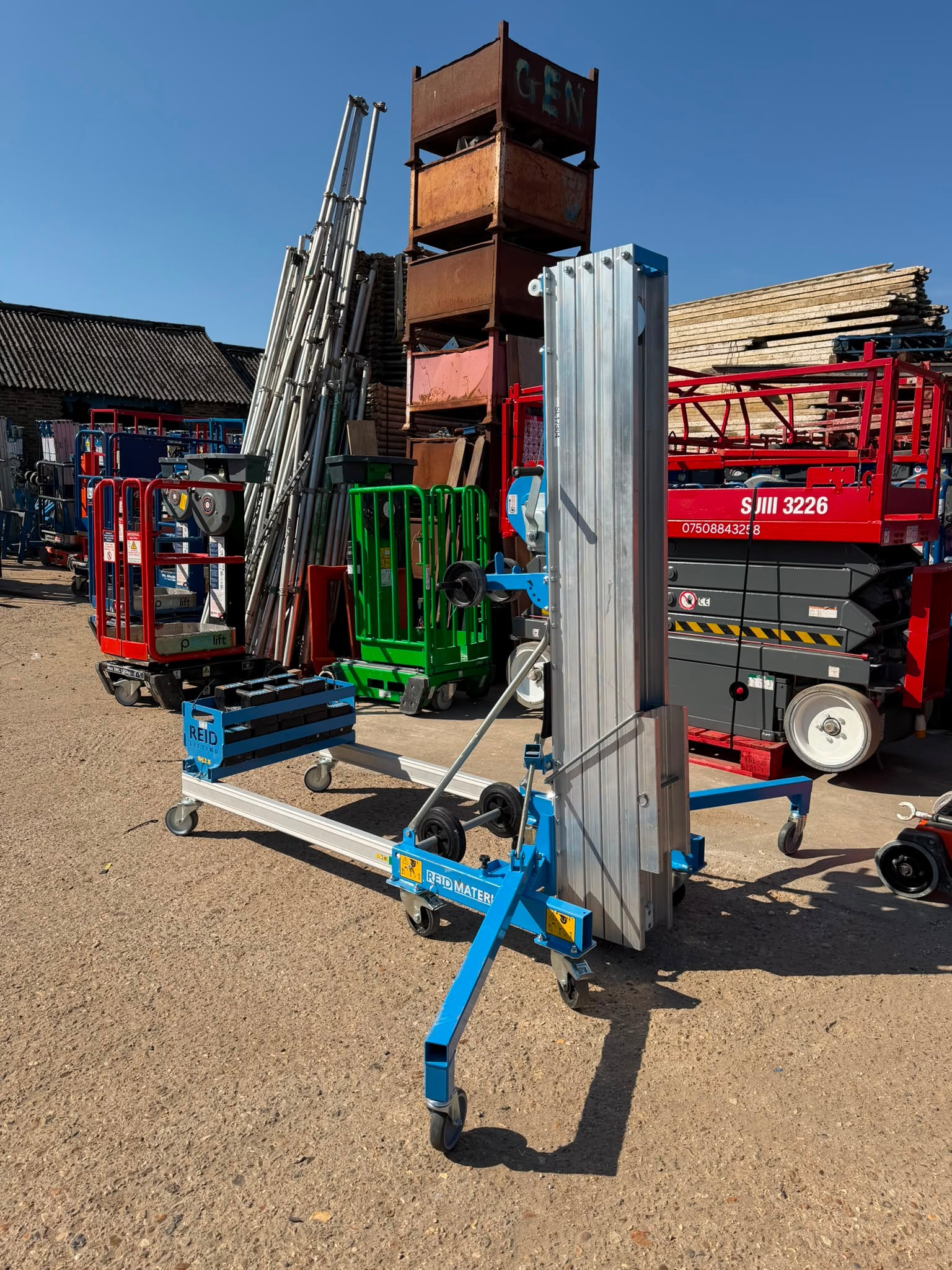

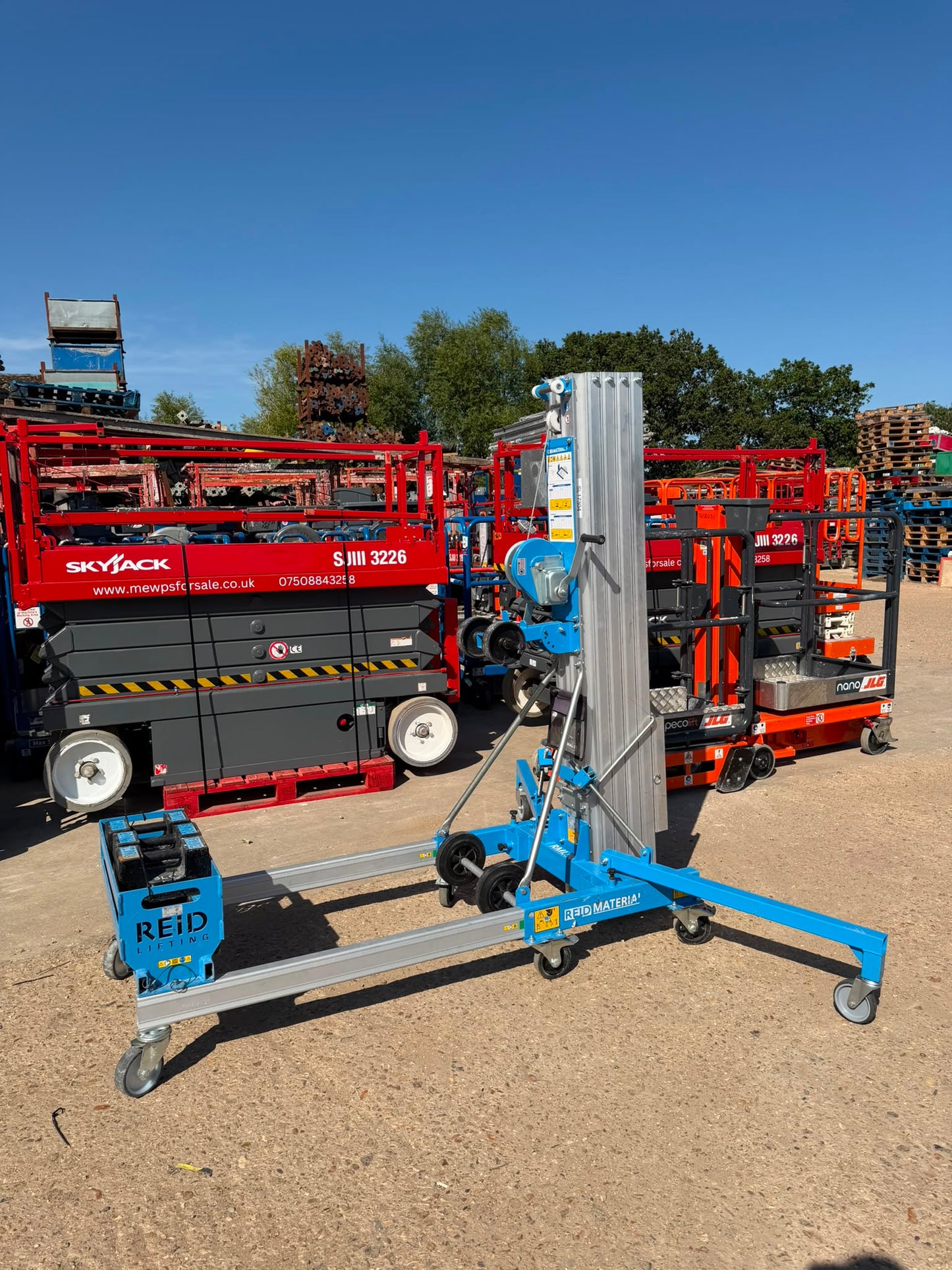

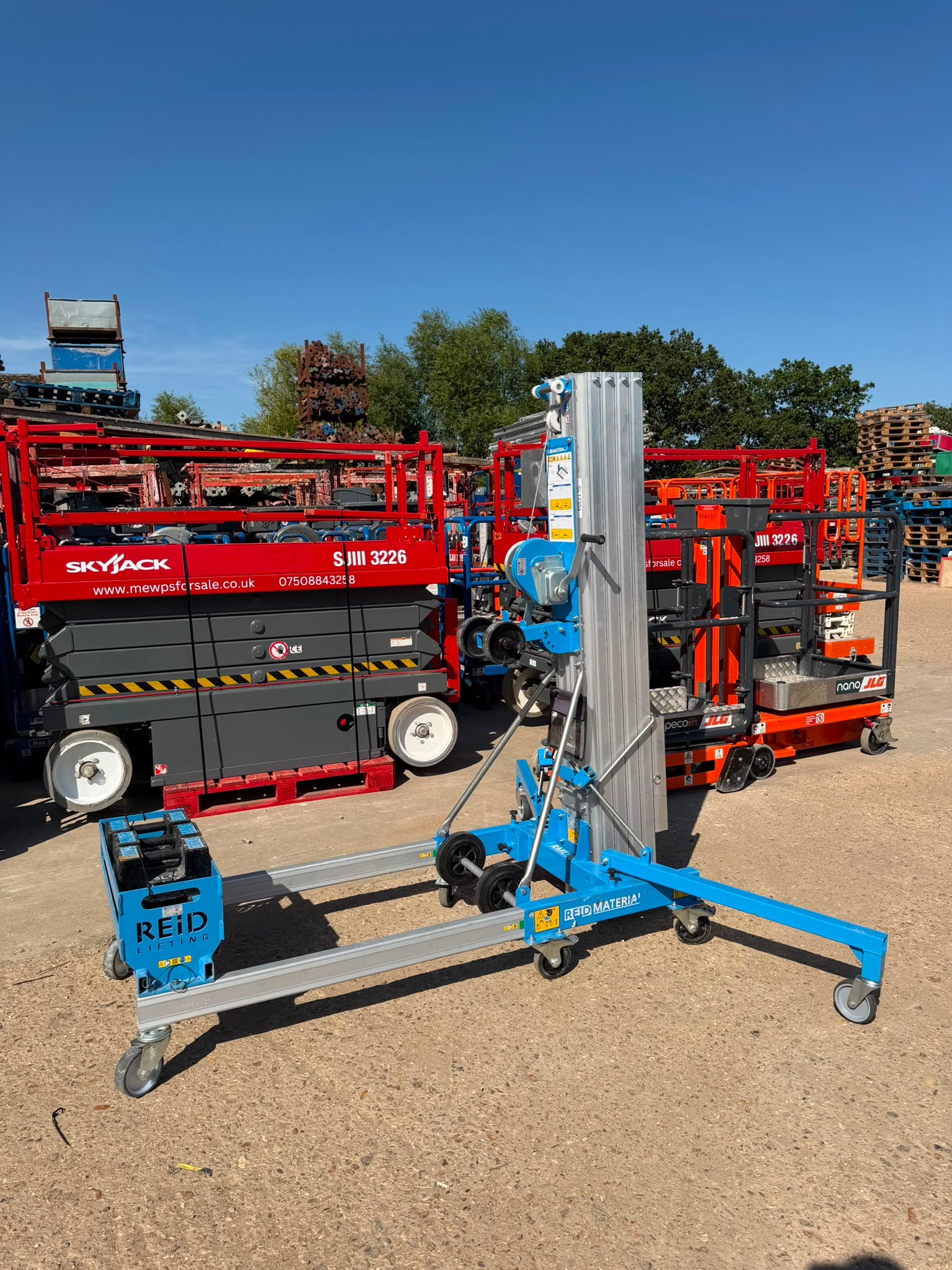

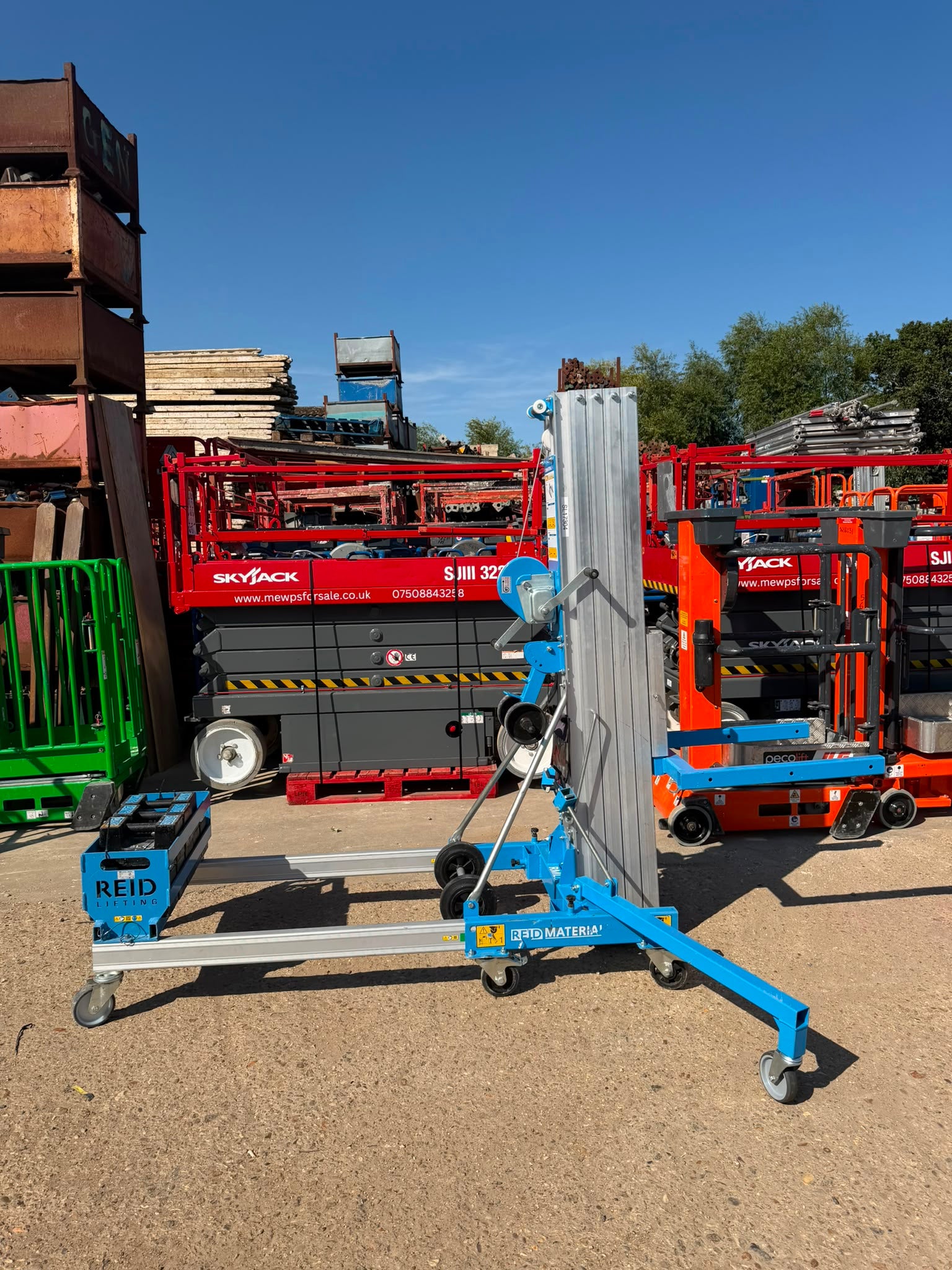

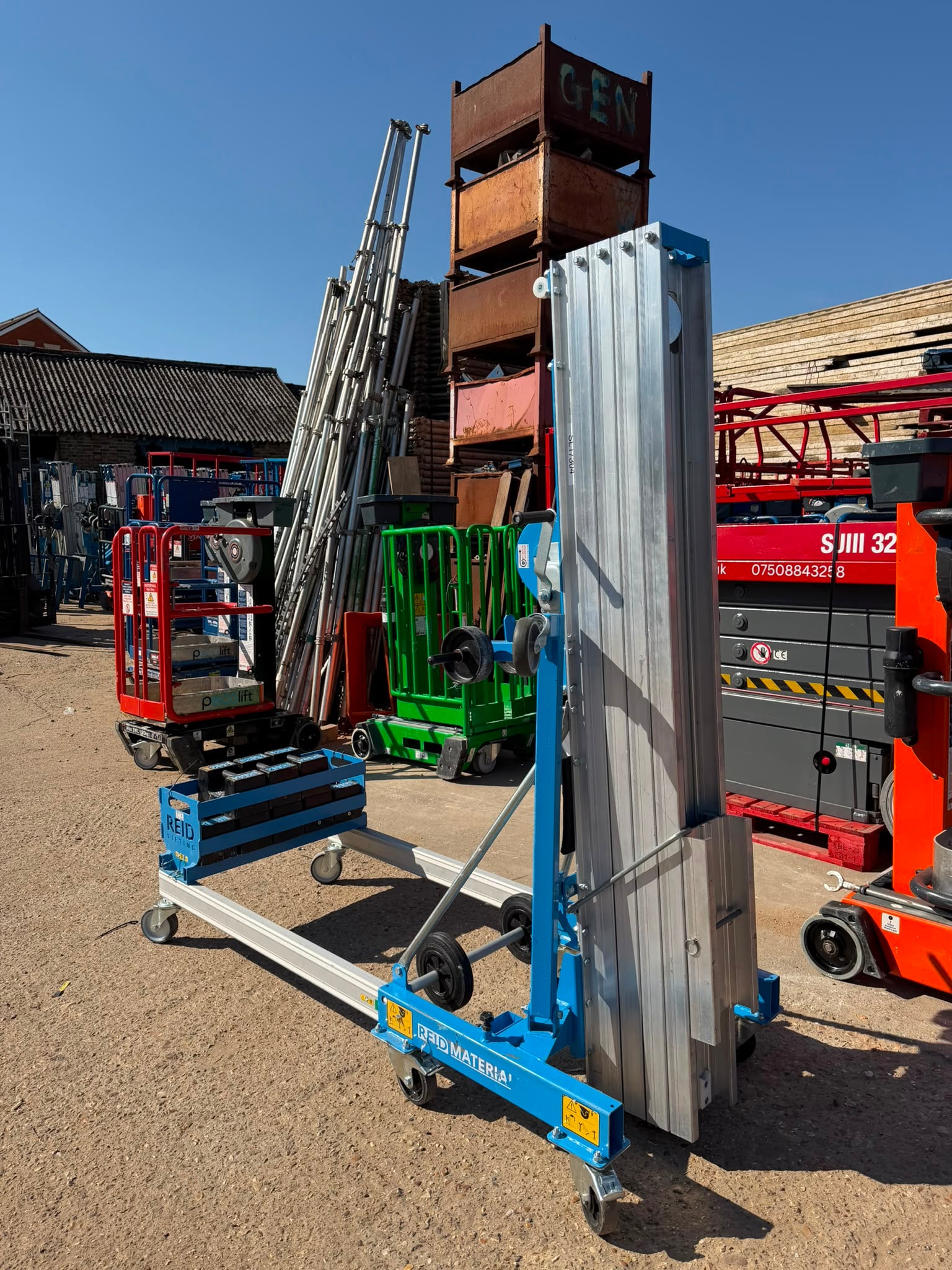

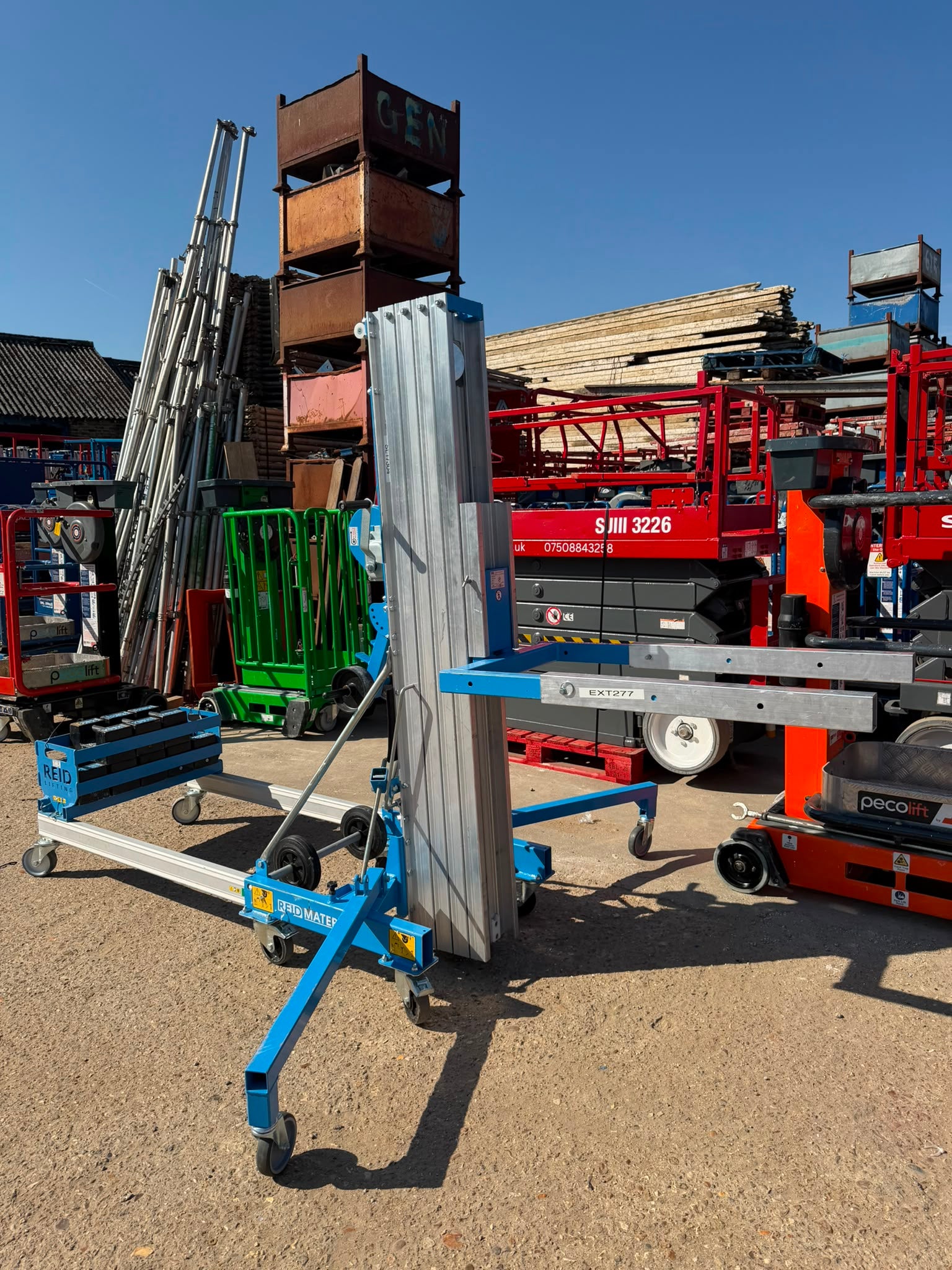

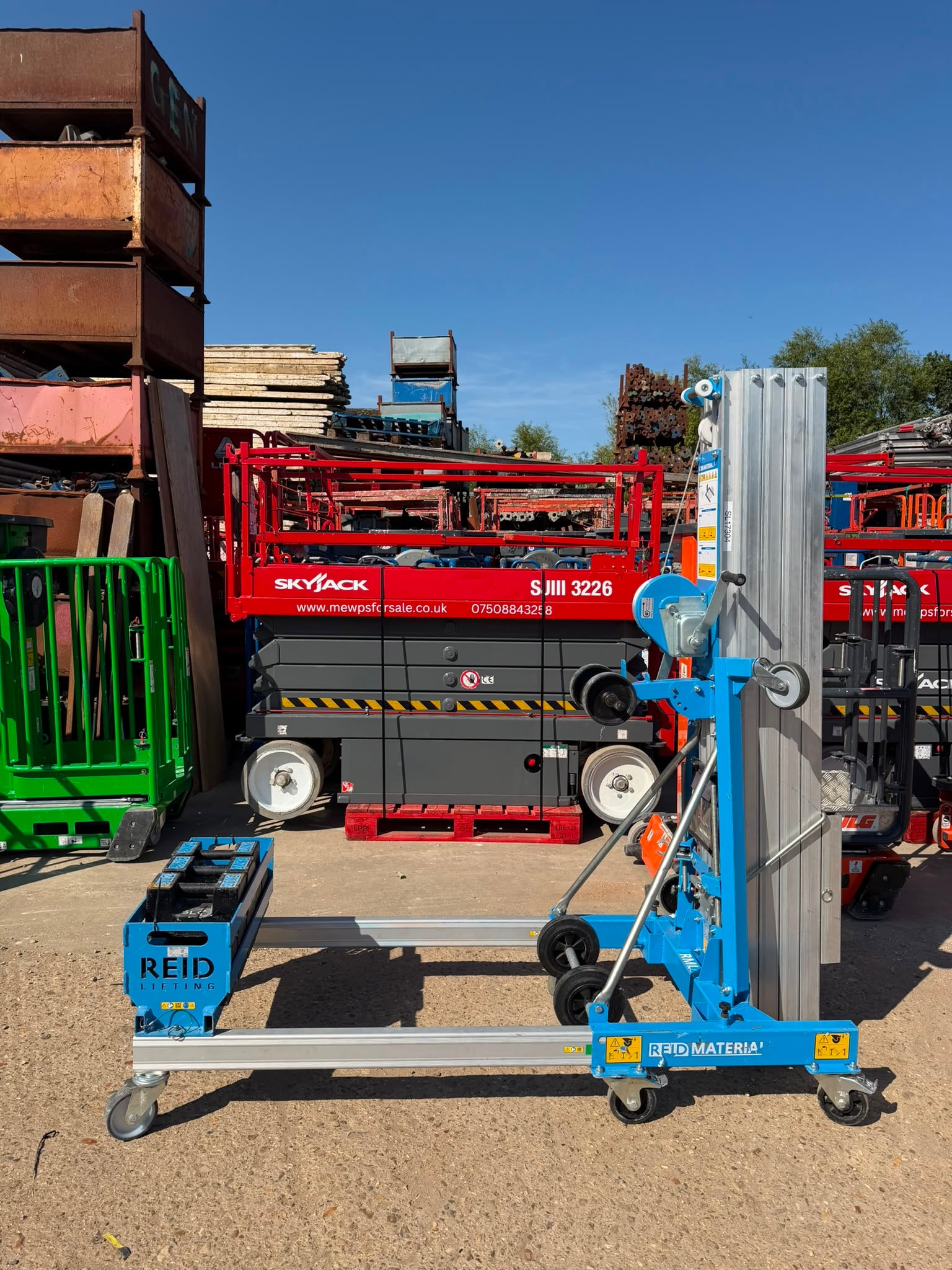

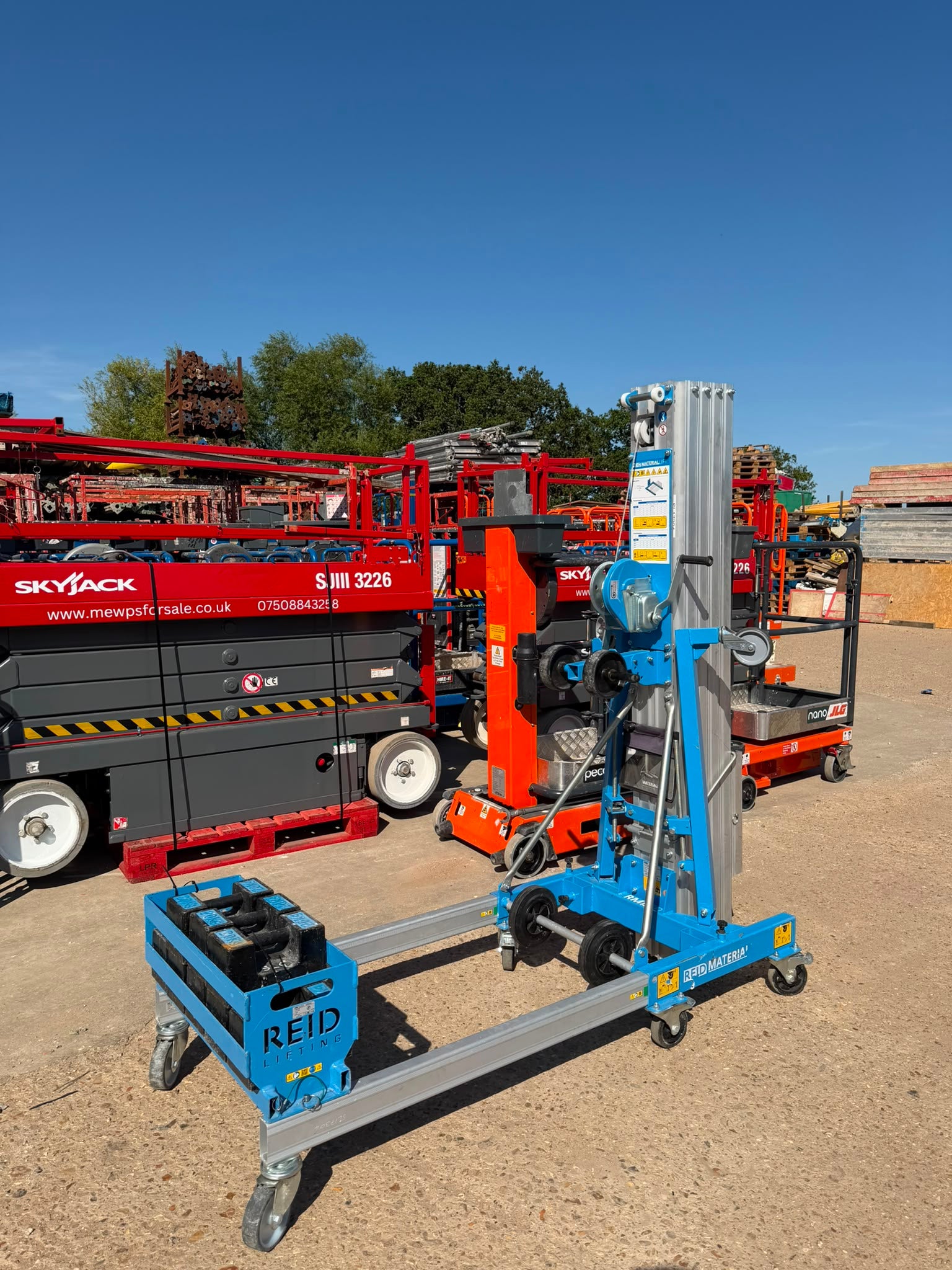

The2025 REID RML60-CBRis a manually operated, telescopic material lift with acounterbalance configuration, designed for lifting and positioning materials up to6.0 m. It can be converted between forward-facing and counterbalance configurations without tools, making it suitable for working close to walls, edges and façades as well as in open areas.
Specification
REID RML60-CBR

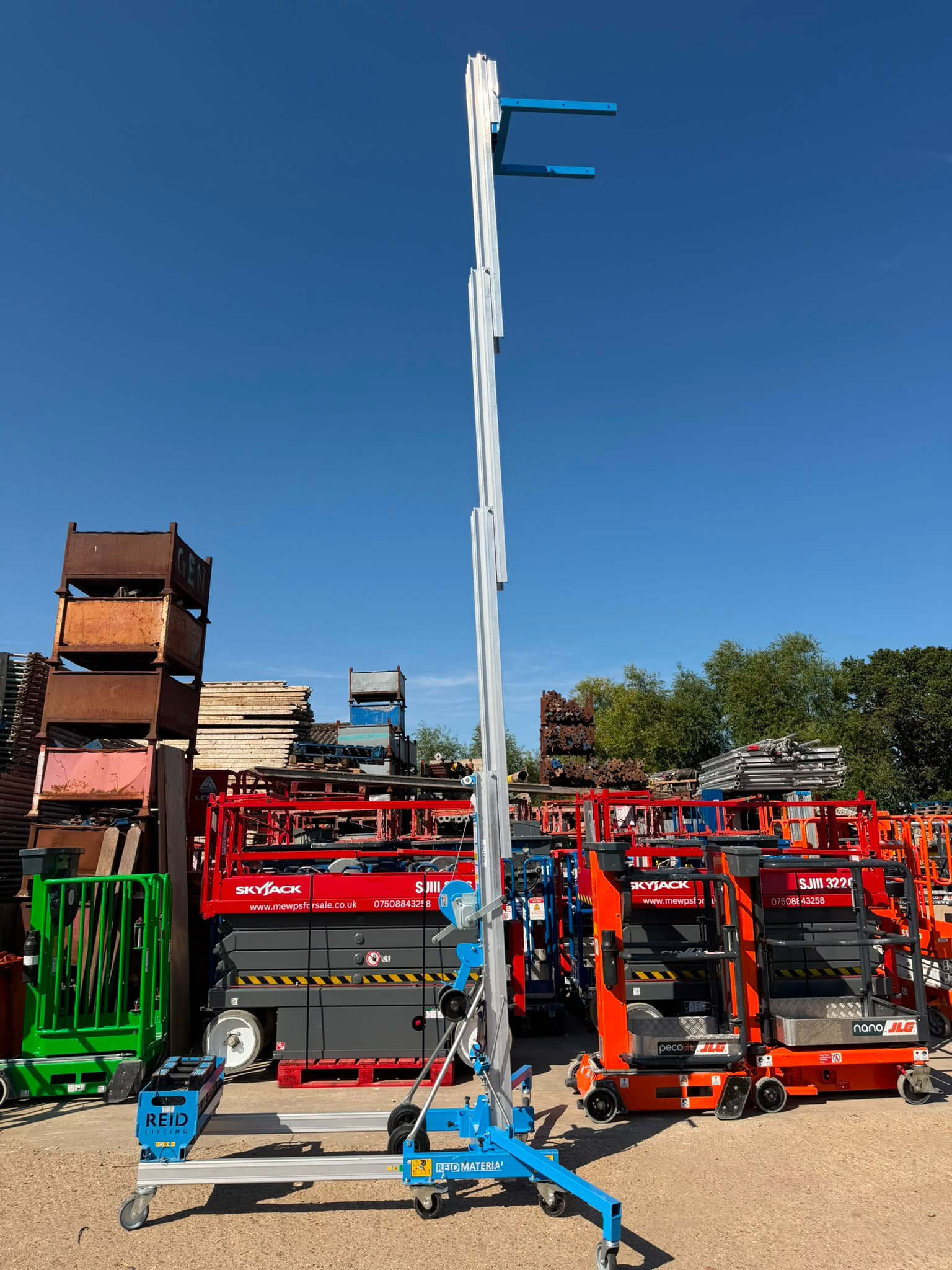

Maximum lifting height
6.00 m
Maximum capacity
360 kg*

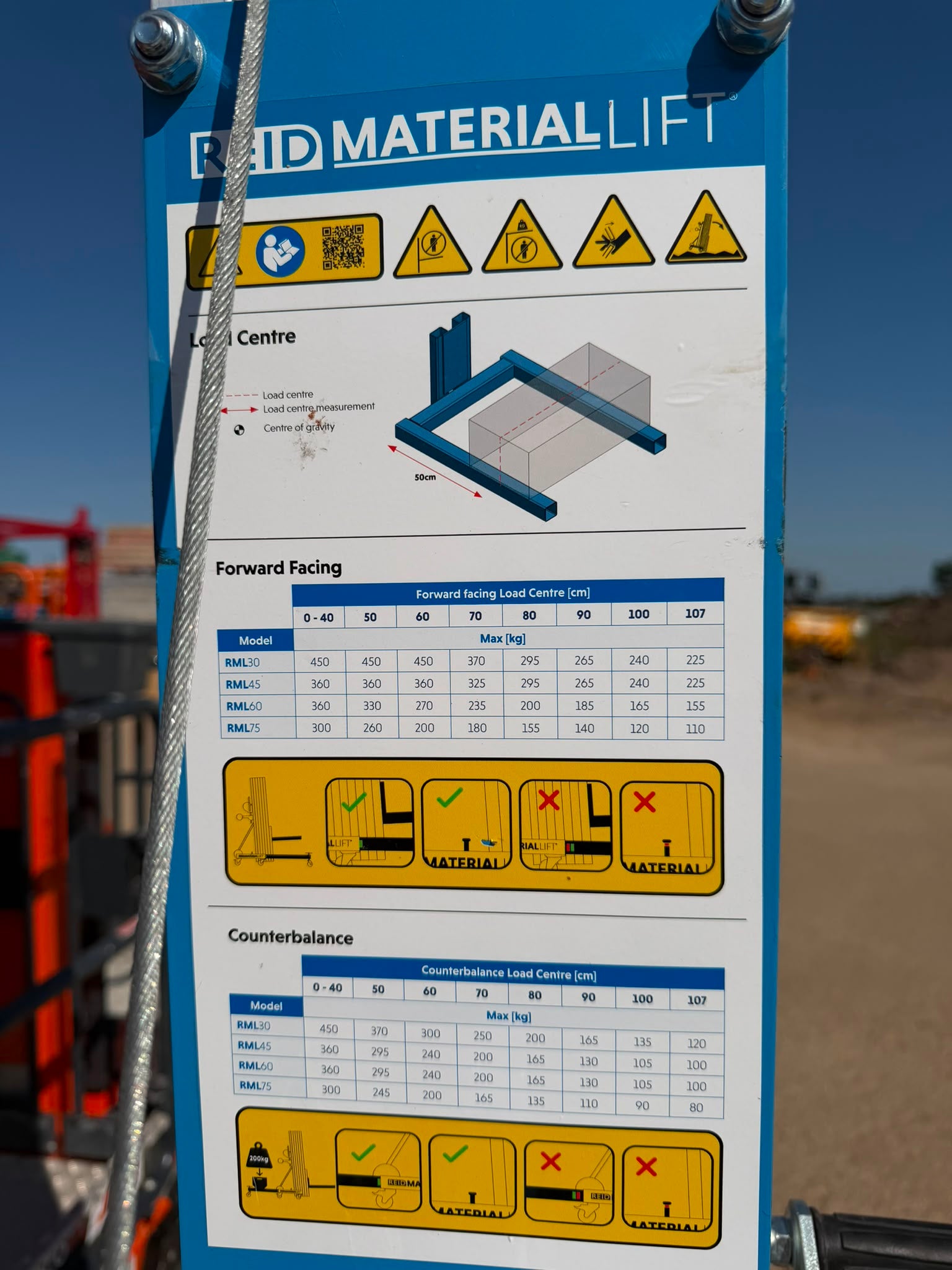

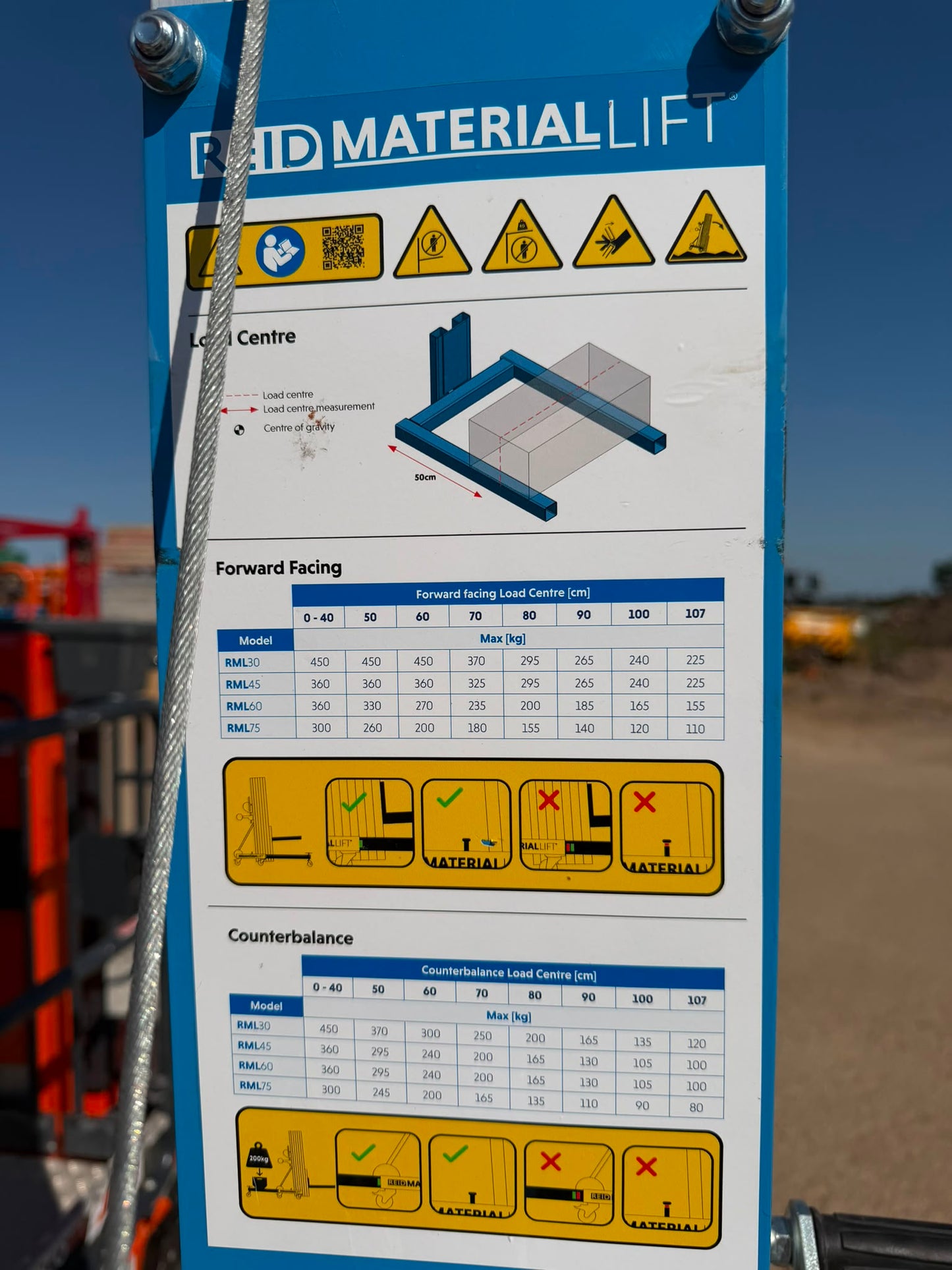

Counterbalance capacity at 50 cm load centre
295 kg
Counterbalance capacity at 60 cm load centre
240 kg
Counterbalance capacity at 70 cm load centre
200 kg
Counterbalance capacity at 80 cm load centre
165 kg
Counterbalance capacity at 90 cm load centre
130 kg
Counterbalance capacity at 100 cm load centre
105 kg
Counterbalance capacity at 107 cm load centre
100 kg
Weight – lift only
approx. 183 kg
Weight – with counterweights
approx. 383 kg
Length – forward configuration
1.97 m
Length – counterbalance configuration
2.797 m
Folded length
0.881 m
Folded width
0.80 m
Folded height
2.001 m
Operation
Manual winch

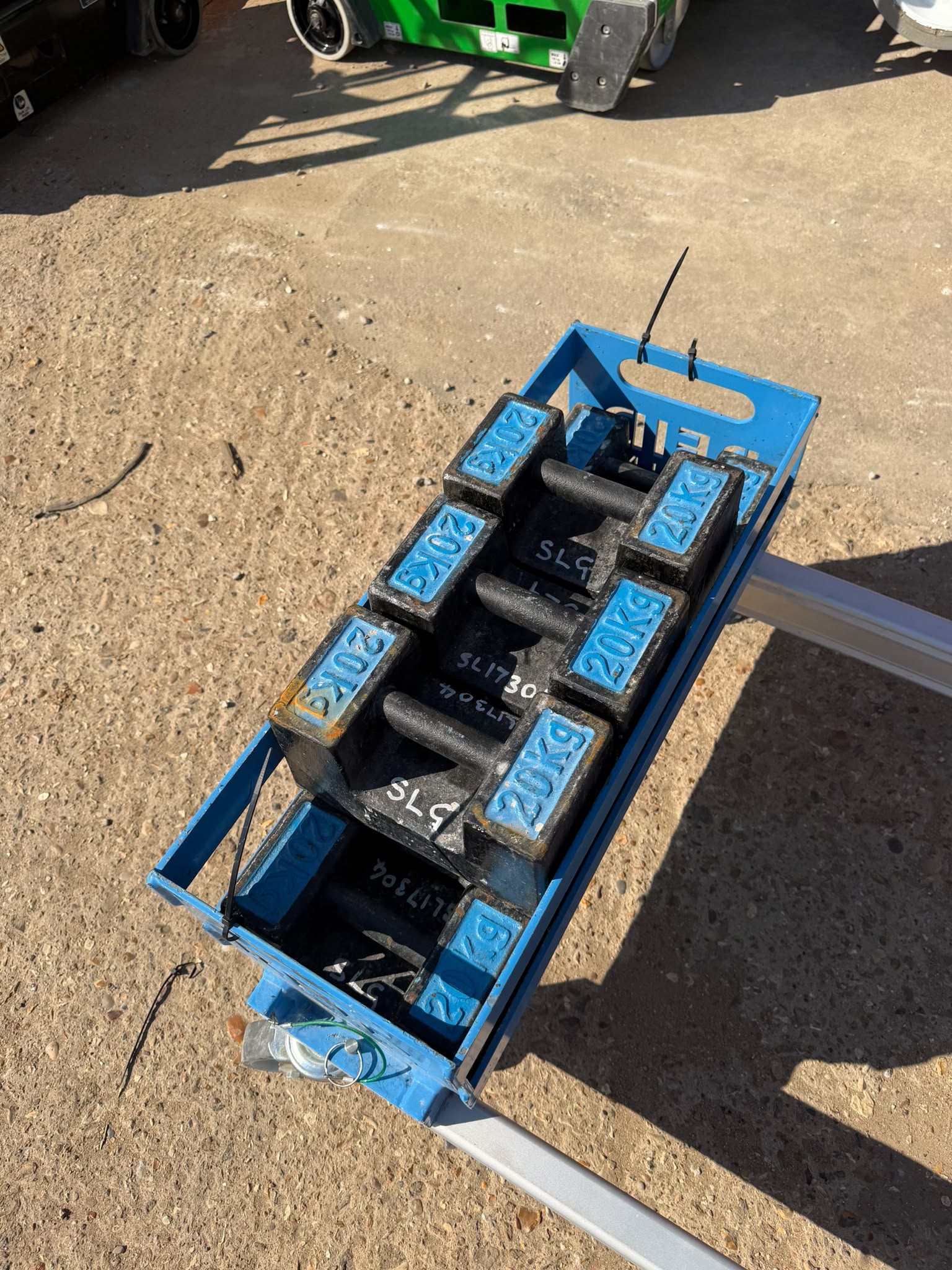

Counterweights required
200 kg
Configuration change
Tool-free
Wheels
360° castors + rough-ground transport wheels
Standard attachment
Forks
Supplied with 6 months LOLER Certificate
60 days warranty
Fully serviced
VAT to be added to the price. Full VAT invoice supplied
For more information please contact me on 07508843258 or ....,,,info@cshiresolutions.com,,,….
