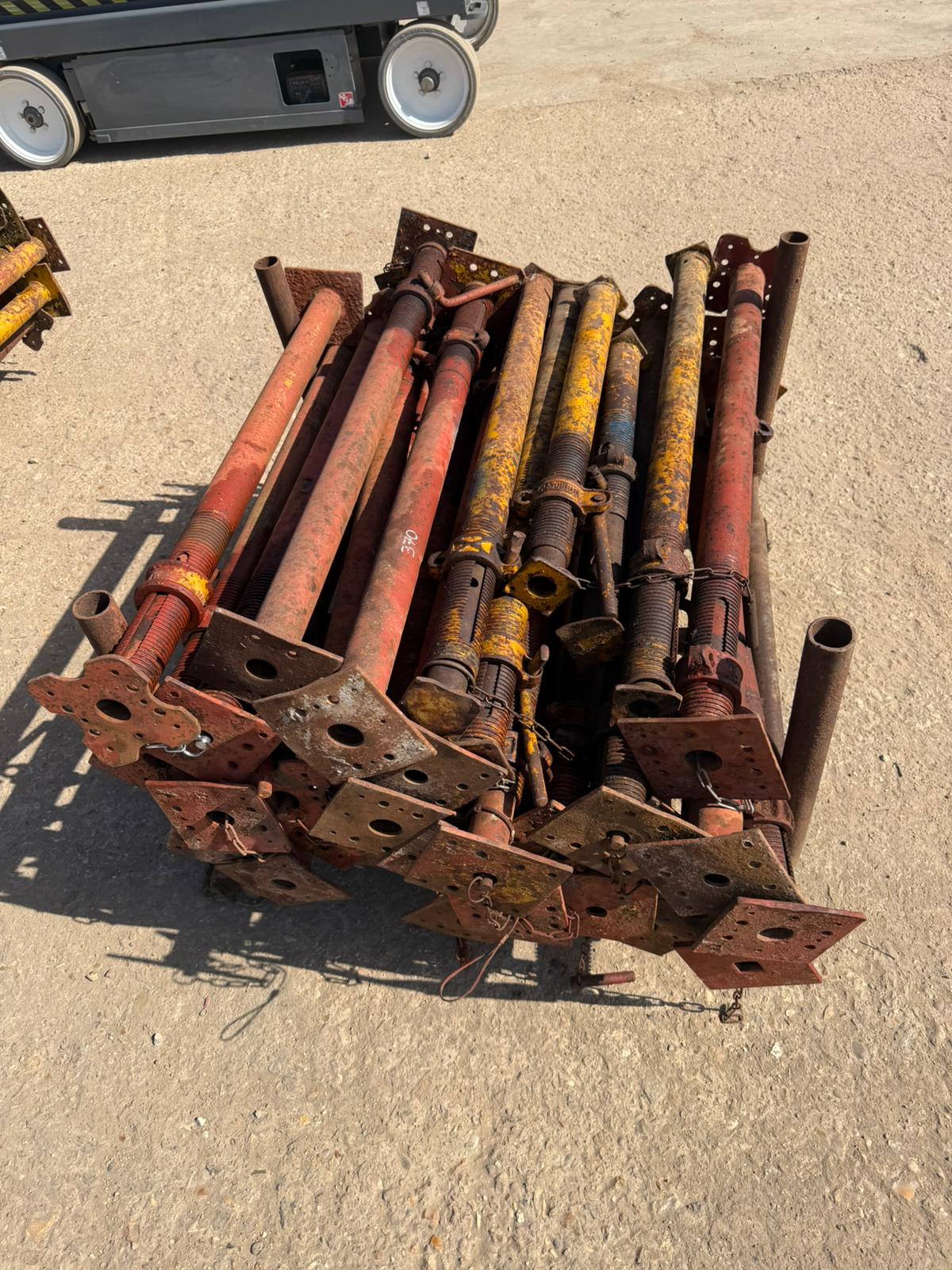

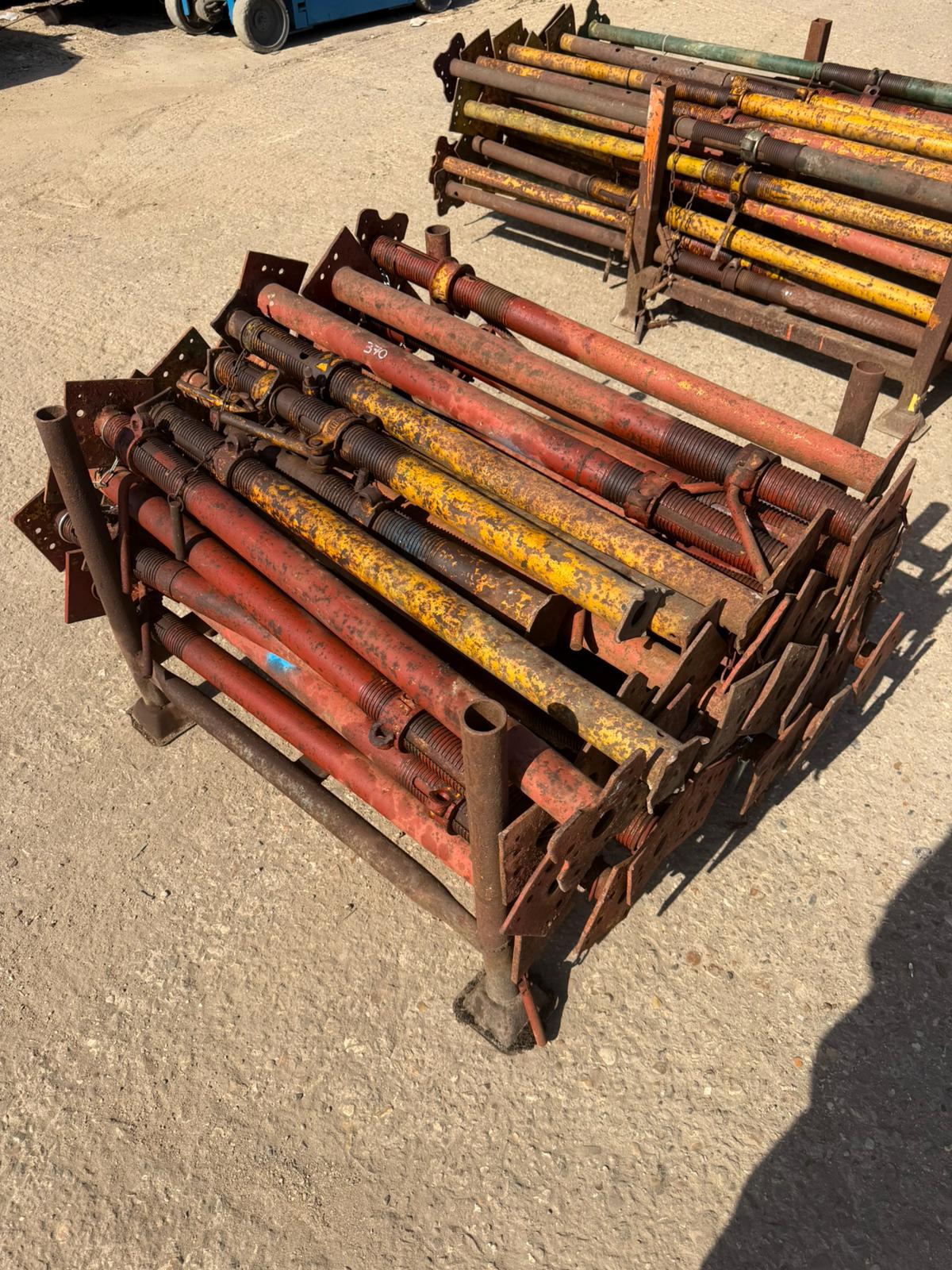

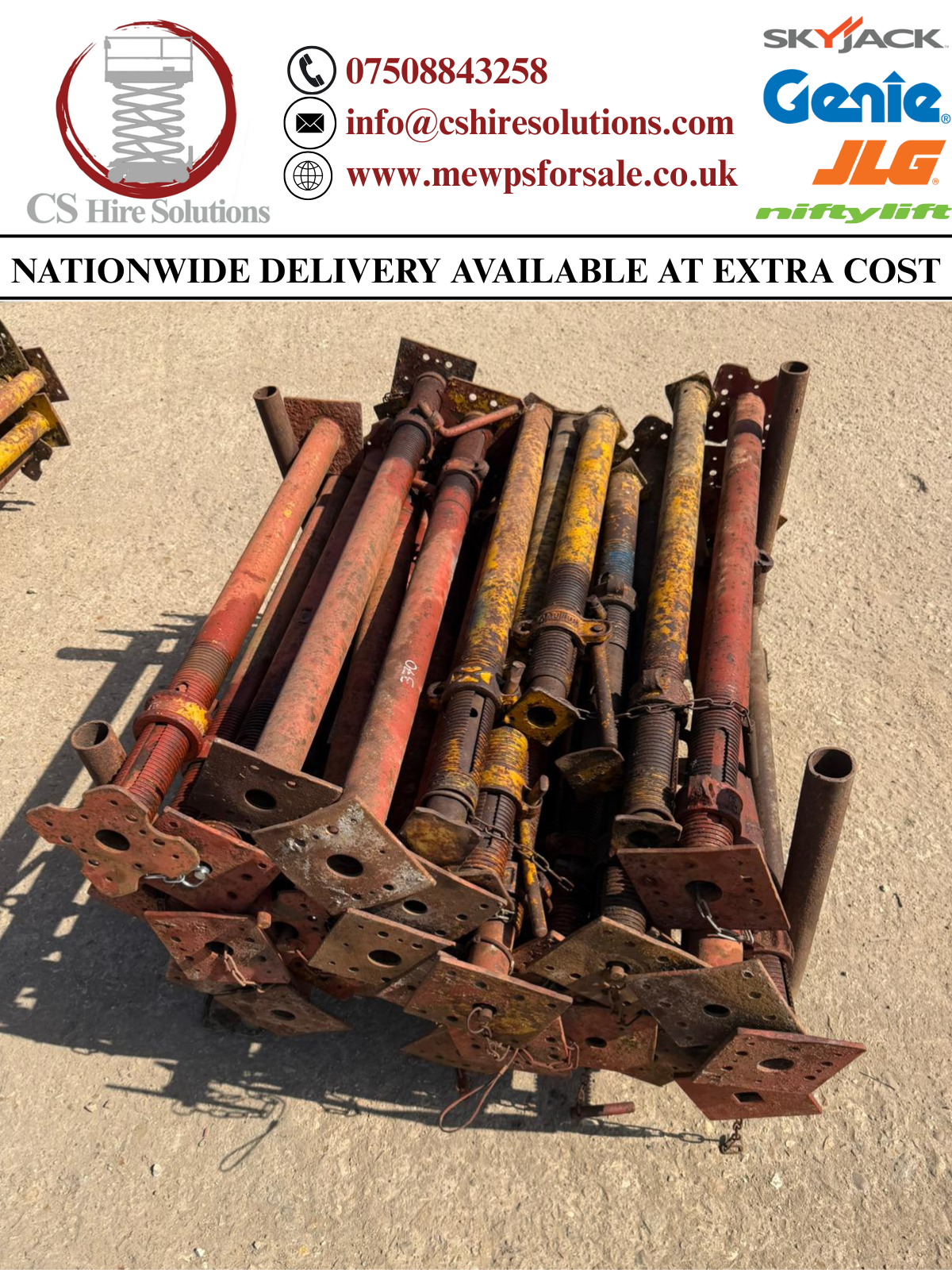

Size 0 Acrow Props 1.1m-1.8m RSJ Support Prop

Size 0 Acrow Props 1.1m-1.8m RSJ Support Prop

£20.00 GBP
£20.00 GBP
Sale Sold out

The Size 0 Acrow Prop (1.1m–1.8m) RSJ Support Prop is a heavy-duty adjustable steel support designed for temporary structural support during beam, lintel, ceiling, and wall installation work. It is commonly used alongside Strongboy or prop support attachments when installing RSJs (Rolled Steel Joists) and carrying out structural alterations in residential and commercial construction projects.

Specification Details
Prop Size Size 0
Closed Height 1.1 m
Extended Height 1.8 m
Weight Approx. 11.3–14.3 kg
Material Heavy-duty steel


Base Plate Size 150 × 150 × 6 mm
Inner Tube Diameter 48.3 mm
Inner Tube Thickness 3.2 mm
Outer Tube Diameter 60.3 mm
Outer Tube Thickness 3.6 mm
Standard Compliance BS4074
Safe Working Load Up to approx. 1,700 kg depending on extension
Adjustment Type Telescopic with pin and threaded collar

RSJ / Prop Support Specifications

Specification Details
Support Type Prop Support / Strongboy Compatible
Maximum Working Height Up to 3 m
Safe Working Load Approx. 340 kg
Support Weight Approx. 5.8–7.3 kg
Typical Use Supporting masonry above RSJ openings

Main Features

  • Adjustable telescopic steel prop
  • Designed for RSJ and lintel installation support
  • Compatible with Strongboy and prop support systems
  • Heavy-duty welded steel plates for stability
  • Suitable for low ceilings and tight-access areas
  • Corrosion-resistant painted or powder-coated finish
  • Quick adjustment using pin and threaded collar
  • Reusable for construction and renovation work

Common Applications



  • RSJ beam installation
  • Load-bearing wall removal
  • Lintel replacement
  • Basement and loft conversions
  • Ceiling and floor support
  • Temporary structural propping
  • Masonry support during alterations


CASH ON COLLECTION. VAT to be added to the final price.

Nationwide delivery available at extra cost

For more information please contact .......07508843258...... or email...,info@cshiresolutions.com.,,,,,
