Mewps For Sale

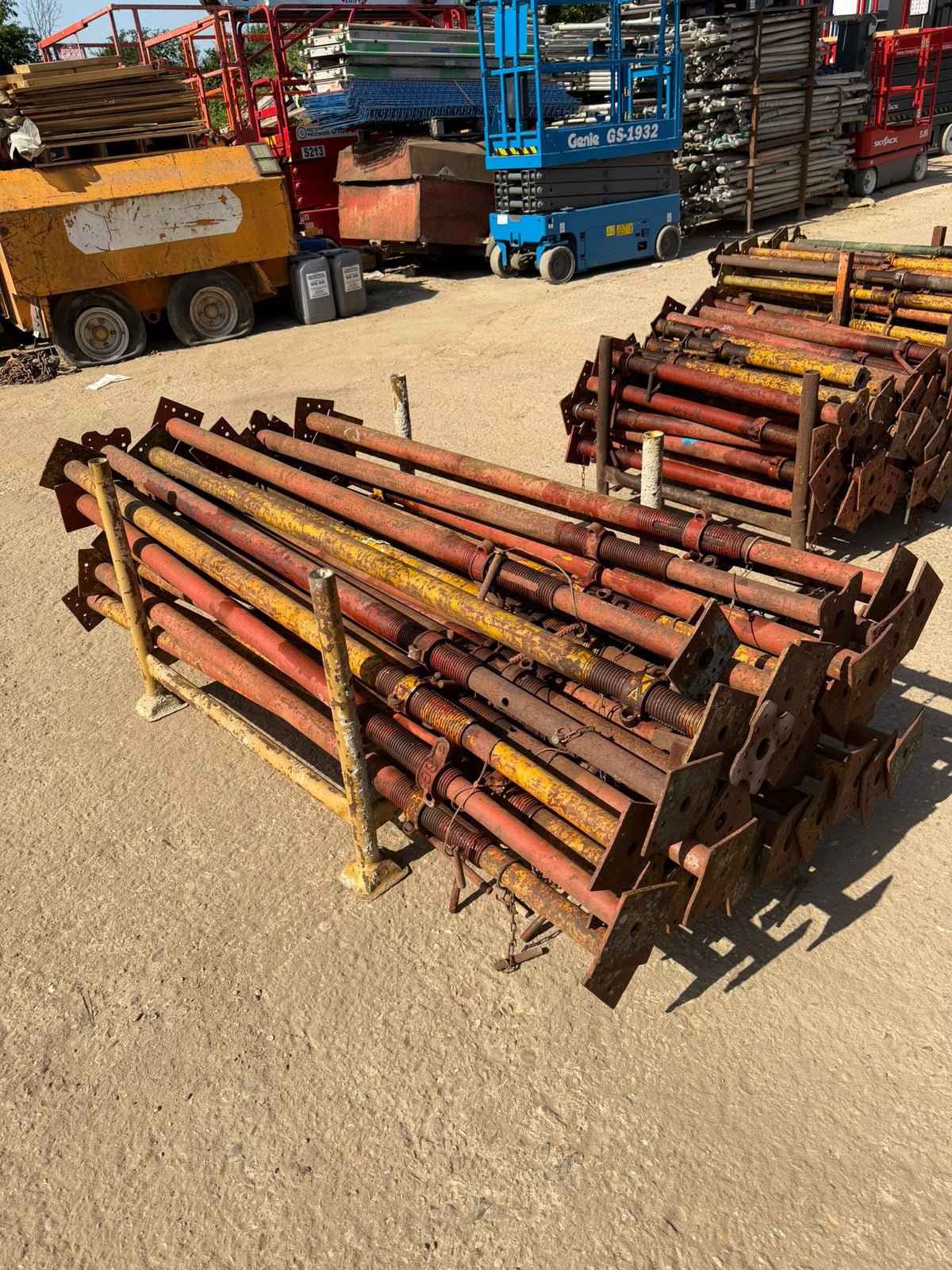

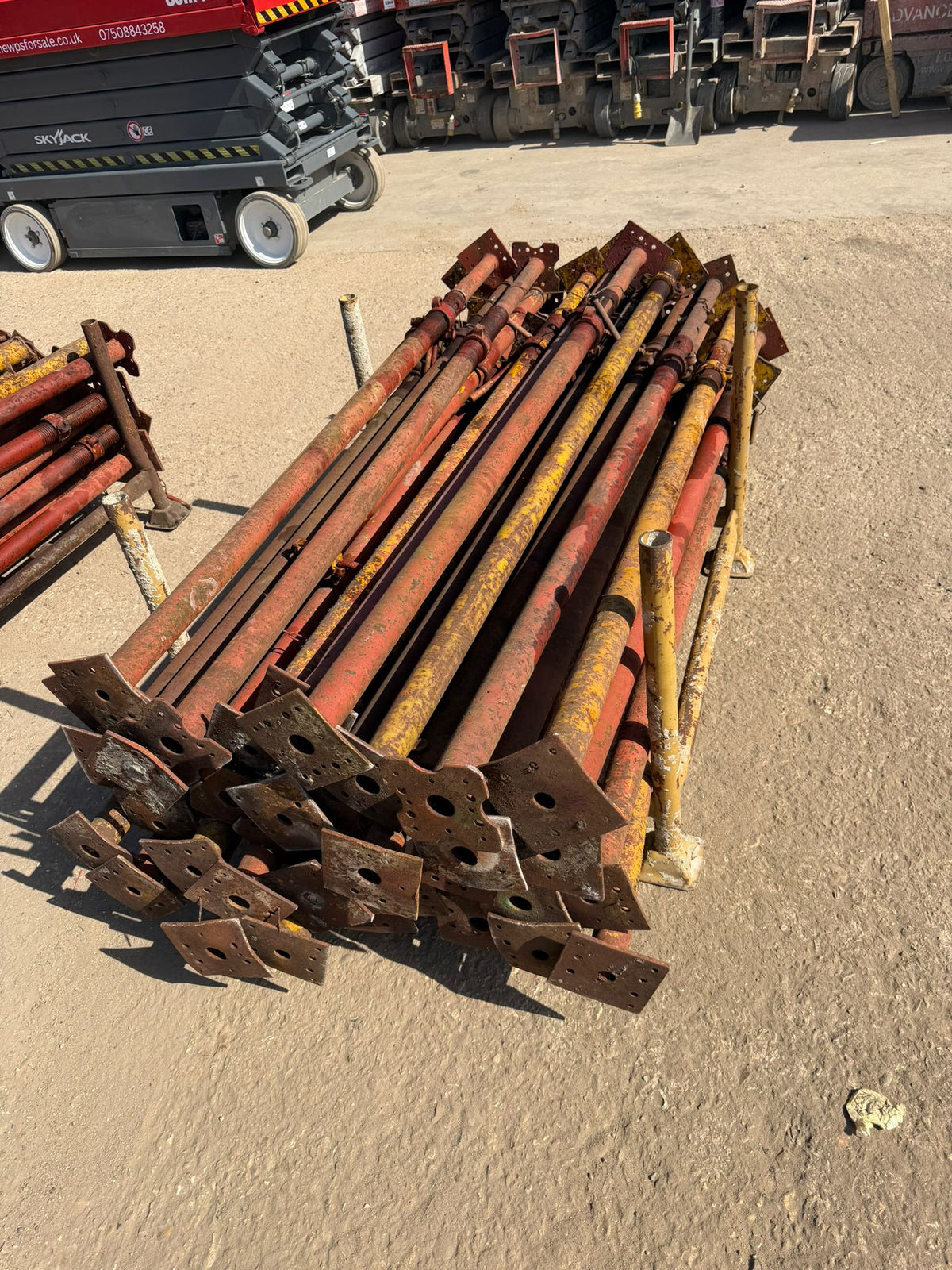

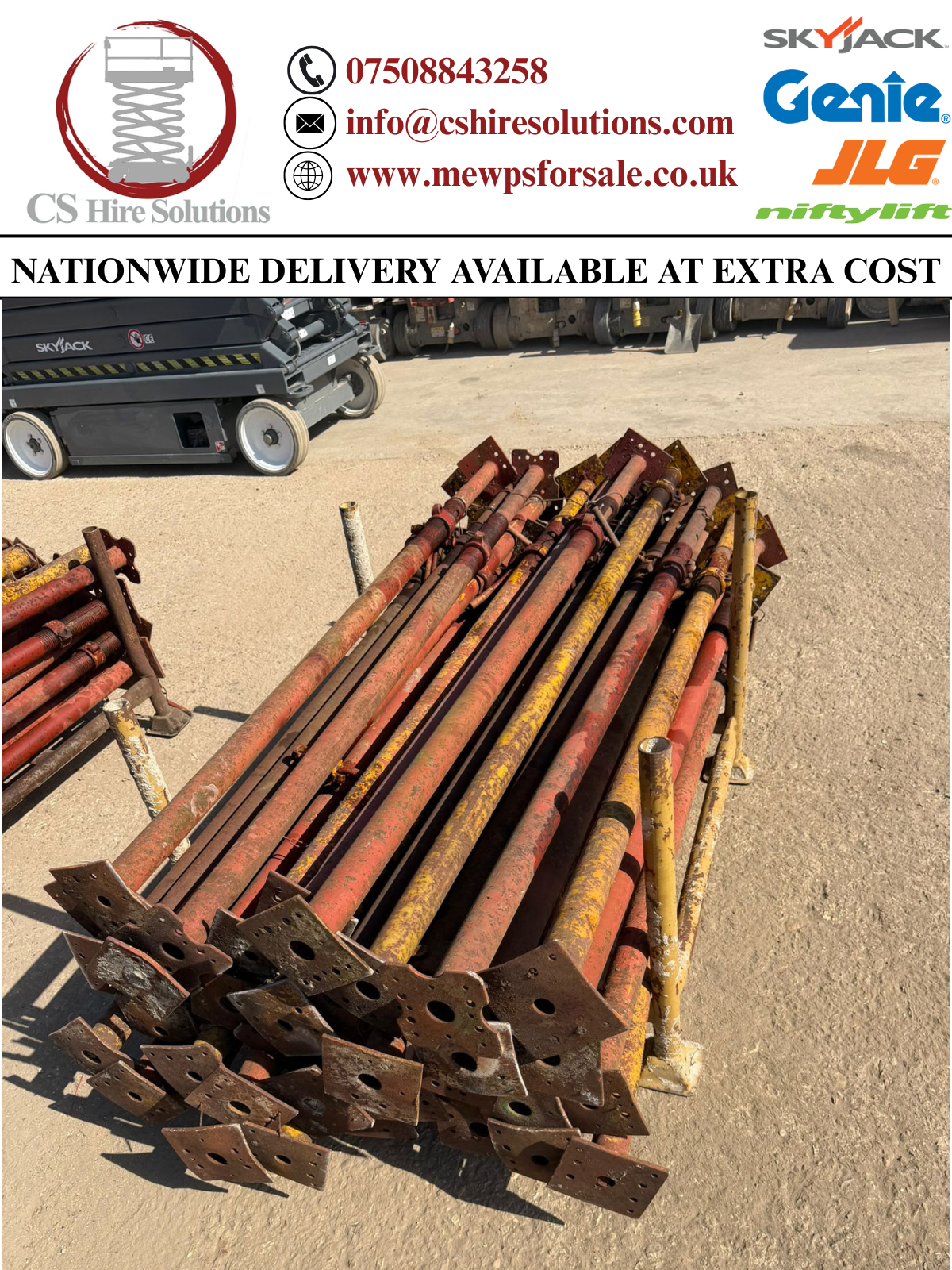

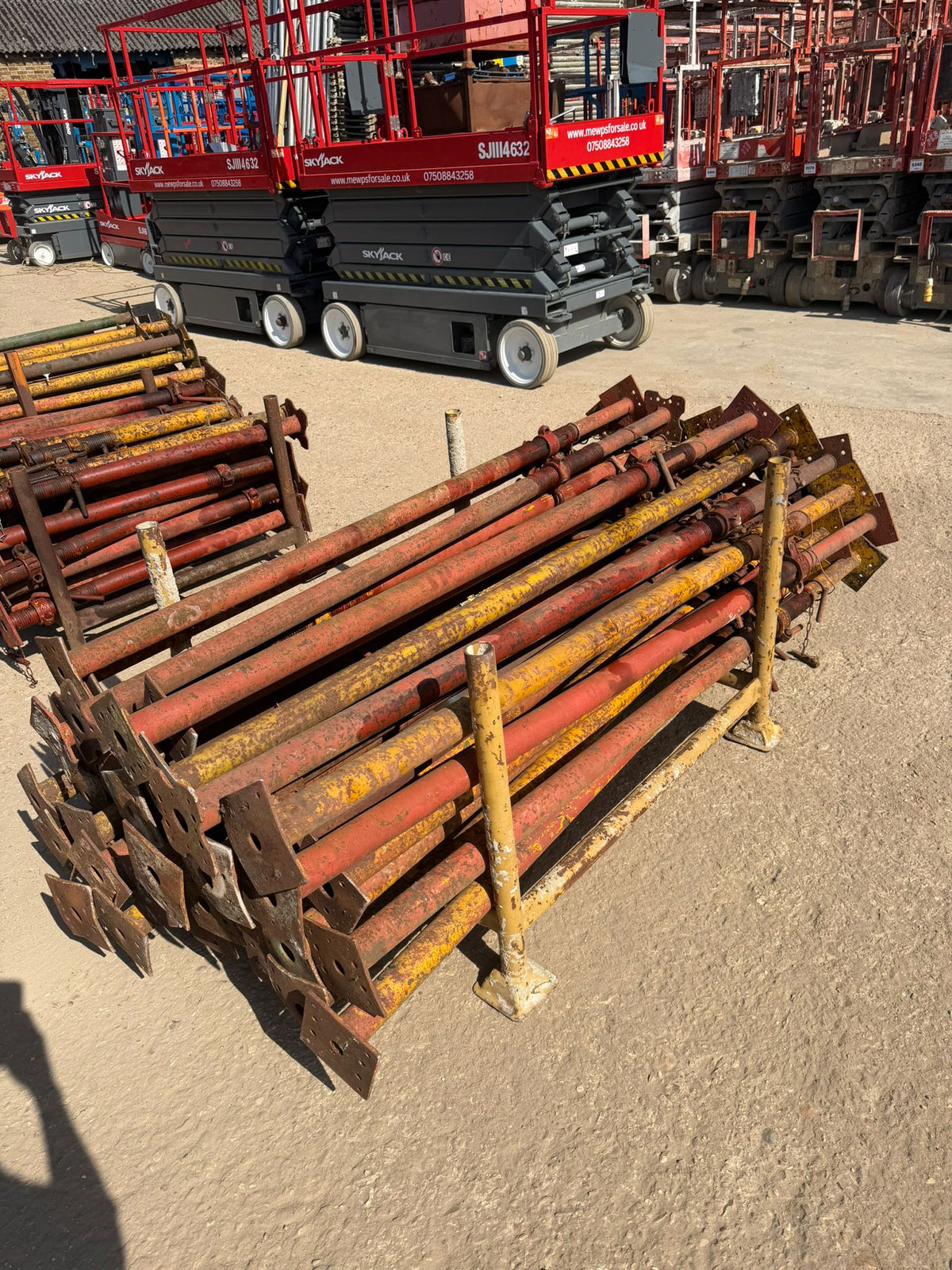

Size 2 Acrow Props 2-3.4m Support Prop RSJ
Size 2 Acrow Props 2-3.4m Support Prop RSJ
Regular price
£20.00 GBP
Regular price
£24.00 GBP
Sale price
£20.00 GBP
Unit price
/
per
Couldn't load pickup availability
The Size 2 Acrow Prop (2.0m–3.4m) RSJ Support Prop is a heavy-duty adjustable steel support used for temporary structural support during construction, renovation, and steel beam installation work. It is commonly paired with Strongboy or masonry support attachments when fitting RSJs (Rolled Steel Joists), replacing lintels, or removing load-bearing walls. The Size 2 prop is suitable for medium-height applications in domestic and commercial projects.
| Prop Size | Size 2 |
| Closed Height | 2.0 m |
| Extended Height | 3.4 m |
| Weight | Approx. 19–21 kg |
| Material | Heavy-duty steel |
| Base Plate Size | 150 × 150 × 6 mm |
| Inner Tube Diameter | 48.3 mm |
| Inner Tube Thickness | 3.2 mm |
| Outer Tube Diameter | 60.3 mm |
| Outer Tube Thickness | 3.6 mm |
| Adjustment Type | Telescopic with pin and threaded collar |
| Standard Compliance | BS4074 |
| Safe Working Load | Up to approx. 35 kN closed / 13 kN extended |
RSJ / Strongboy Support Details
| Specification | Details |
|---|---|
| Compatible Attachment | Strongboy / Prop Support |
| Typical Safe Working Load | Approx. 340 kg per support |
| Main Use | Supporting masonry above RSJ openings |
| Installation Type | Temporary structural support |
Main Features
- Adjustable telescopic steel support prop
- Suitable for RSJ and lintel installation work
- Compatible with Strongboy masonry supports
- Heavy-duty welded top and base plates
- Quick adjustment with captive pin and threaded collar
- Powder-coated or painted for corrosion resistance
- Reusable for construction and structural projects
- Stable support for walls, ceilings, and beams
Common Applications
- Installing RSJ steel beams
- Supporting load-bearing walls
- Structural alterations and knock-throughs
- Lintel replacement
- Ceiling and floor propping
- Loft and basement conversions
- Temporary support during demolition or rebuilding works
CASH ON COLLECTION.
For more information please contact .......07508843258...... or email...,info@cshiresolutions.com.,,,,,
