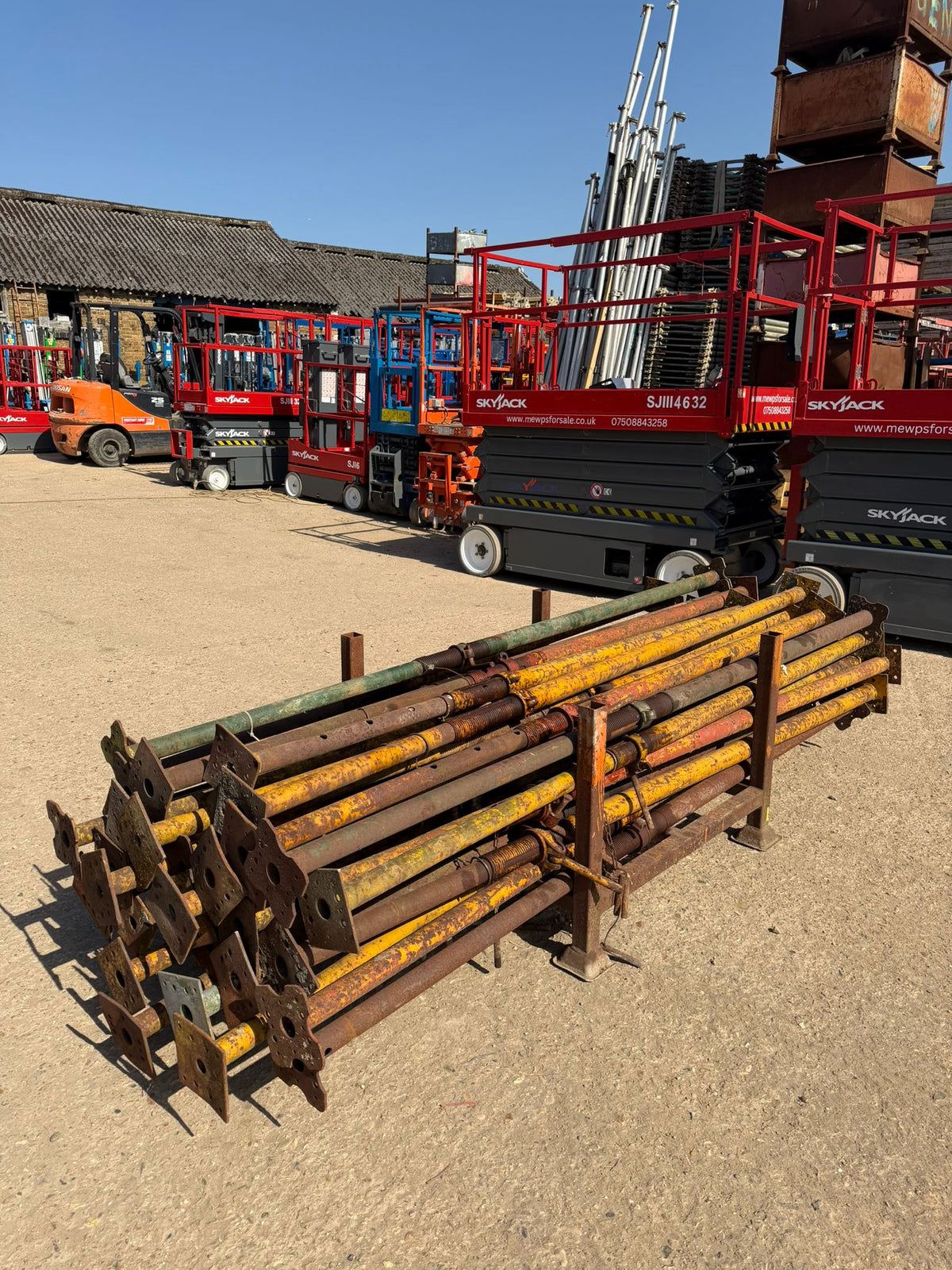

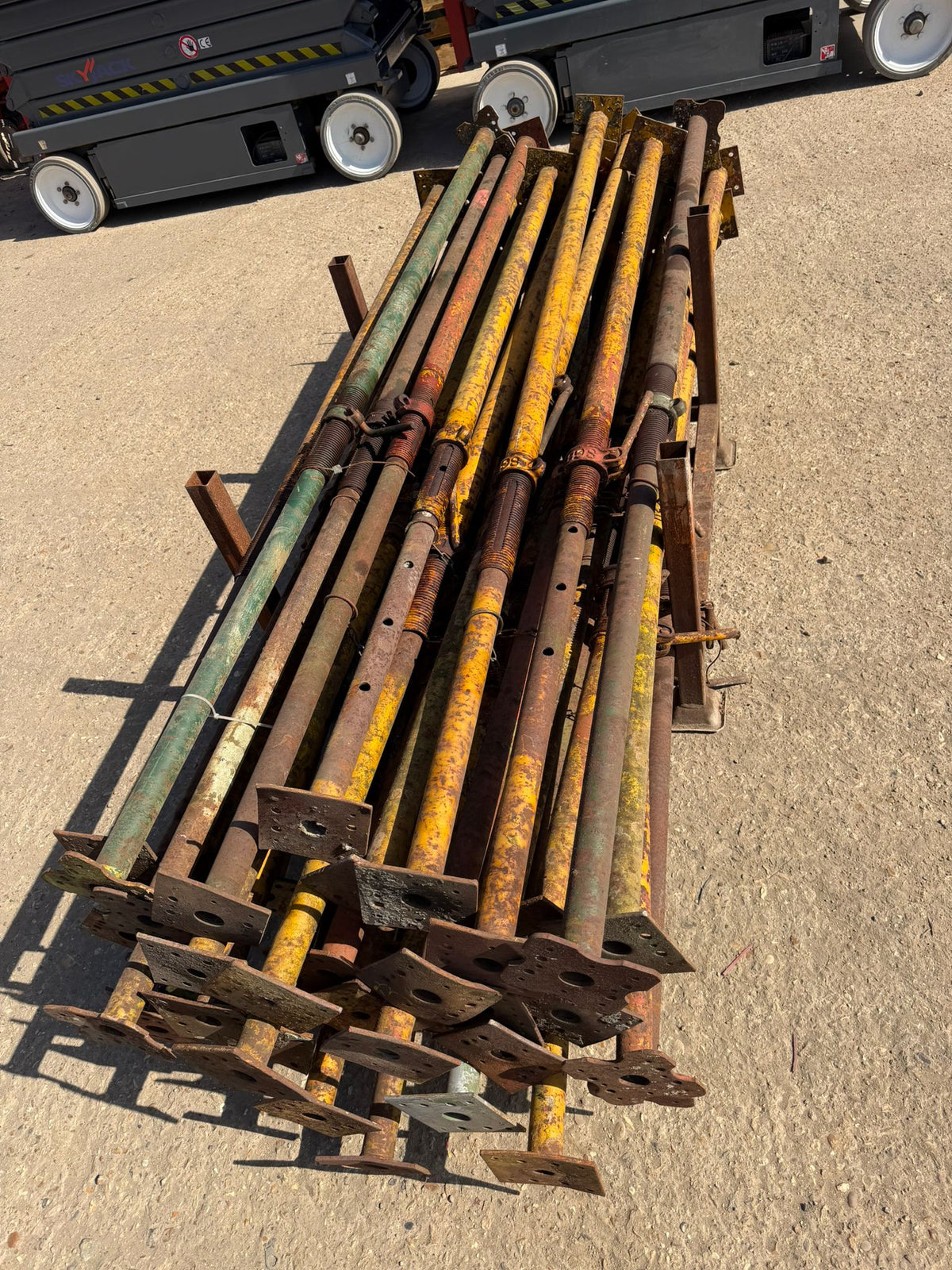

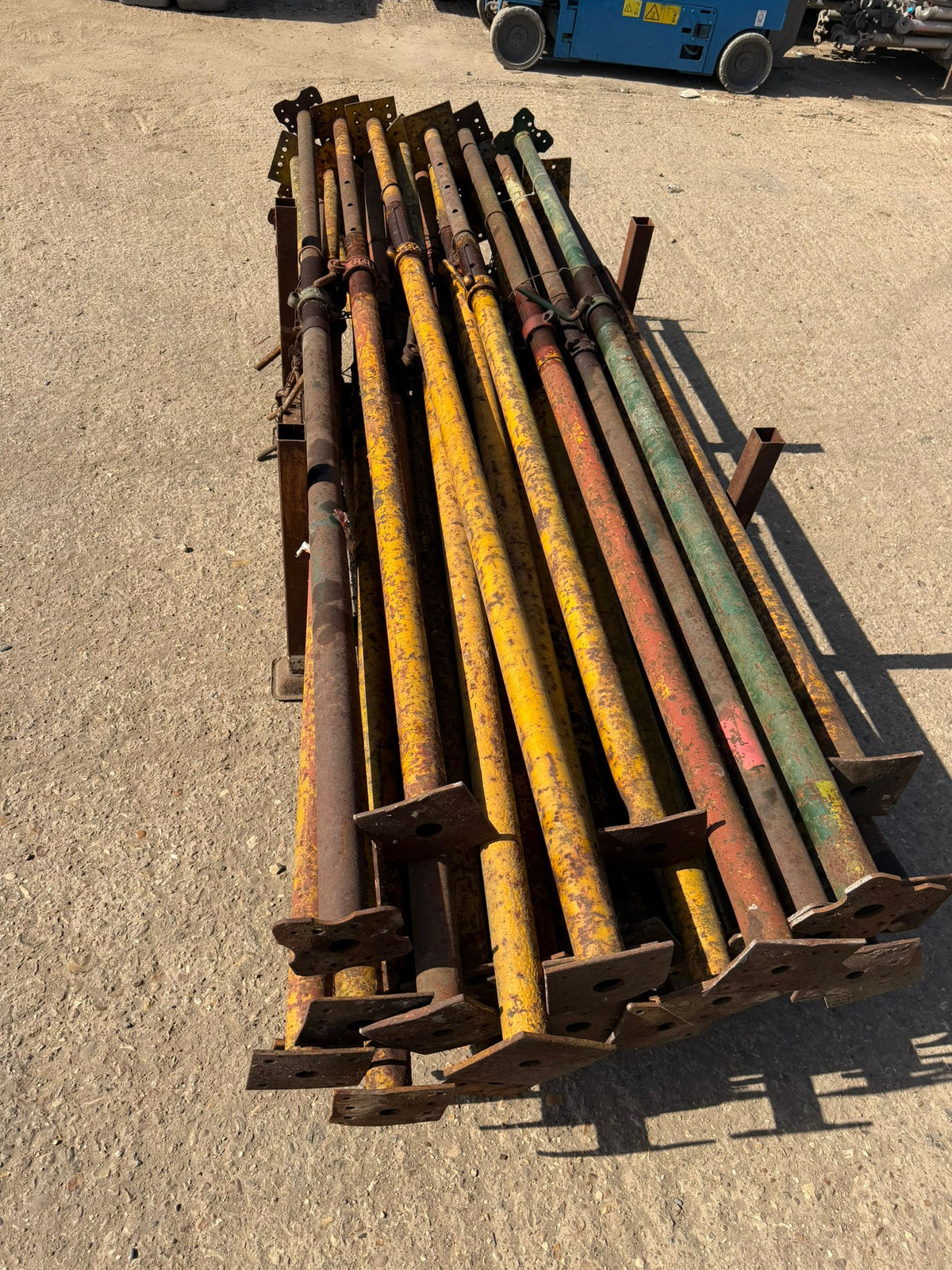

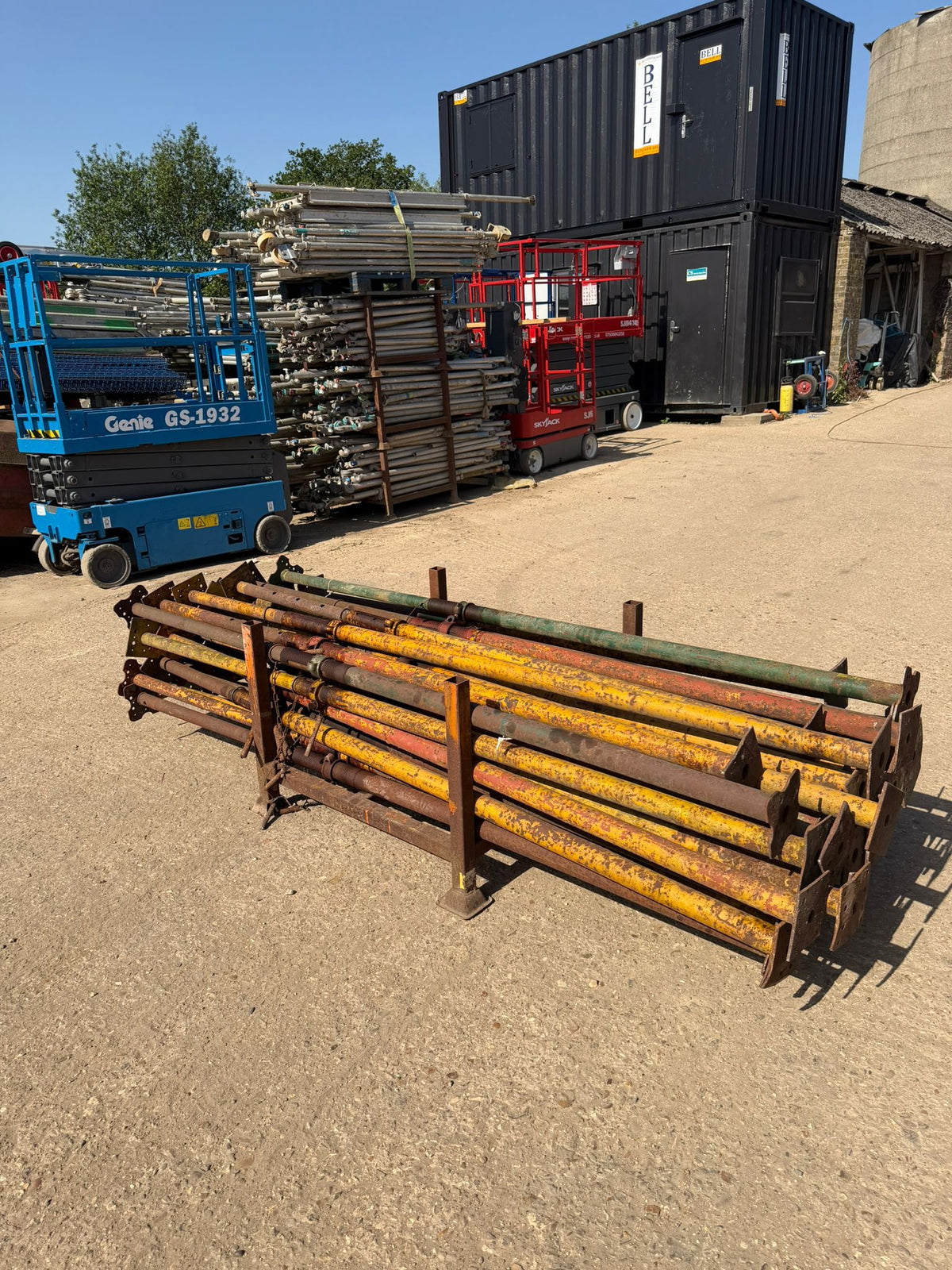

Size 3 Acrow Props 2.59-4m RSJ Support Prop

Size 3 Acrow Props 2.59-4m RSJ Support Prop

£20.00 GBP
£25.00 GBP £20.00 GBP
Sale Sold out

The Size 3 Acrow Prop (2.59m–4.0m) RSJ Support Prop is a heavy-duty adjustable steel prop designed for temporary structural support during construction and renovation projects. It is commonly used for supporting ceilings, walls, formwork, and steel beams during RSJ installation or structural alterations. Size 3 props are ideal for higher ceiling applications and larger openings in residential, commercial, and industrial work.

Prop Size Size 3
Closed Height 2.59 m
Extended Height 4.00 m
Weight Approx. 23–25 kg
Material Heavy-duty steel


Base Plate Size 150 × 150 × 6 mm
Inner Tube Diameter 48.3 mm
Inner Tube Thickness 3.2 mm
Outer Tube Diameter 60.3 mm
Outer Tube Thickness 3.6 mm
Adjustment Type Telescopic with pin and threaded collar
Standard Compliance BS4074
Safe Working Load Approx. 34 kN closed / 7–10 kN extended

RSJ / Strongboy Support Details

Specification Details
Compatible Attachment Strongboy / masonry support
Typical Support Load Approx. 340 kg per support
Primary Use Temporary masonry support during RSJ installation

Main Features

  • Heavy-duty telescopic steel support prop
  • Suitable for high ceilings and larger structural openings
  • Compatible with Strongboy and RSJ support systems
  • Quick adjustment using captive pin and threaded collar
  • Reinforced welded top and base plates
  • Durable corrosion-resistant finish
  • Reusable for professional construction use
  • Stable support for beams, ceilings, and masonry work

Common Applications

  • RSJ steel beam installation
  • Supporting load-bearing walls during alterations
  • Ceiling and floor support
  • Loft conversions and extensions
  • Formwork and shuttering support
  • Structural demolition and rebuilding work
  • Commercial and industrial construction projects

CASH ON COLLECTION.

For more information please contact .......07508843258...... or email...,info@cshiresolutions.com.,,,,,
